Arms and Ammunitions

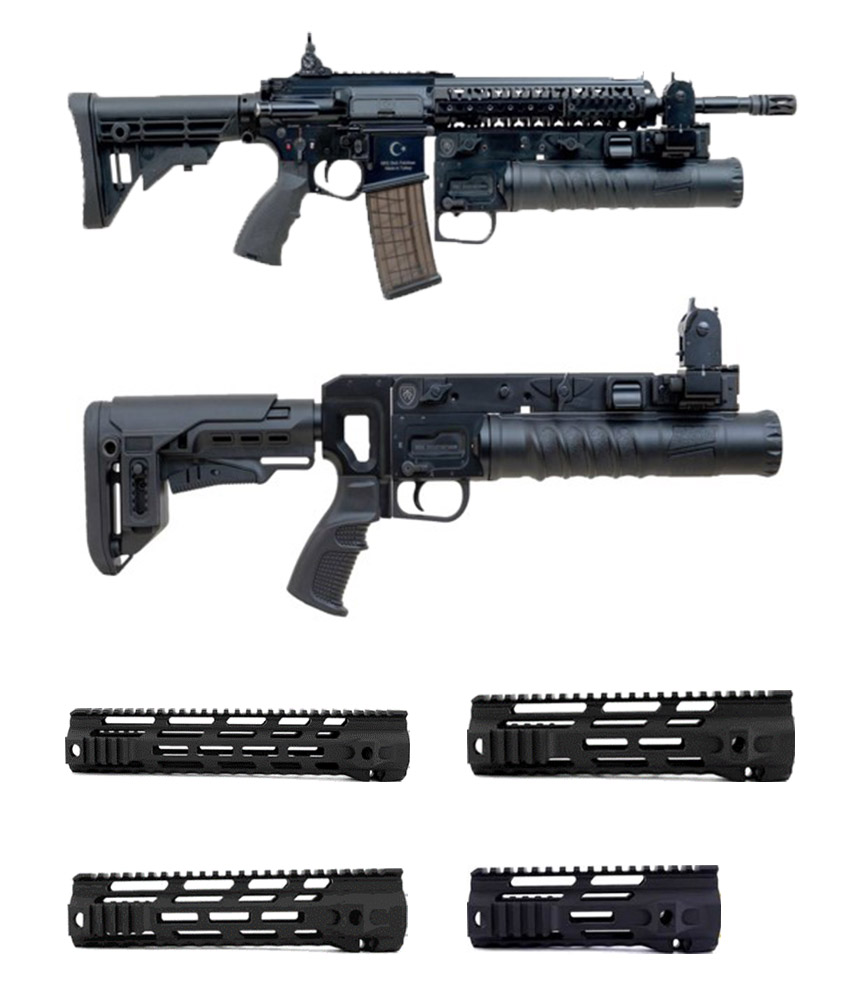

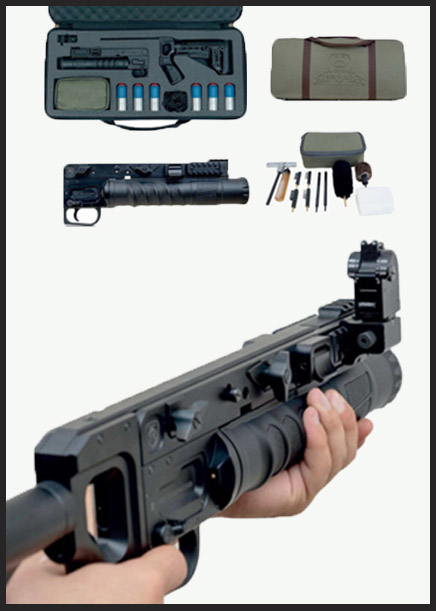

This unique 40 mm grenade launcher has been designed and manufactured to be used with the new generation and current infantry rifles in stock of Turkish Military Forces comprising a Picatinny rail under the barrel. Light and ergonomic design for ease of use and transport, the design for right- and left-hand use (safety latch and double-sided loading) make it remarkable.

TECHNICAL SPECIFICATIONS
OPERATION	Barrel moves forward when the buttons located on both sides of the barrel are depressed simultaneously and the gun is loaded manually by opening the action to the right or left side optionally
CALIBER	40 mm
BARREL LENGTH	255 mm
TOTAL LENGTH STANDALONE (TELESCOPIC STOCK OPEN)	700 mm
TOTAL LENGTH STANDALONE (TELESCOPIC STOCK CLOSED)	610 mm
TOTAL LENGTH ATTACHED TO MPT-76 RIFLE	340 mm
WEIGHT (STANDALONE-EMPTY)	2510 gr
WEIGHT (ATTACHED TO MPT-76 RIFLE-EMPTY)	1470 gr
SIGHT SYSTEM	100-400 m (100 m intervals)
SHOOTING VELOCITY	Single shot
MUZZLE VELOCITY	5-6 rounds / minute
EFFECTIVE RANGE	Minimum 70 m/s
EFFECTIVE RANGE	100 - 400 m
TRIGGER PULL FORCE - COCKING FORCEH	30 - 150 Newton
BARREL LIFE SPAN	5000 rounds
SHOOTING PATTERN	Within 5 meters at 200
TYPE OF AMMUNITION	40x46 mm new and old generation low velocity (LV) ammunition of any type

Arms and Ammunitions

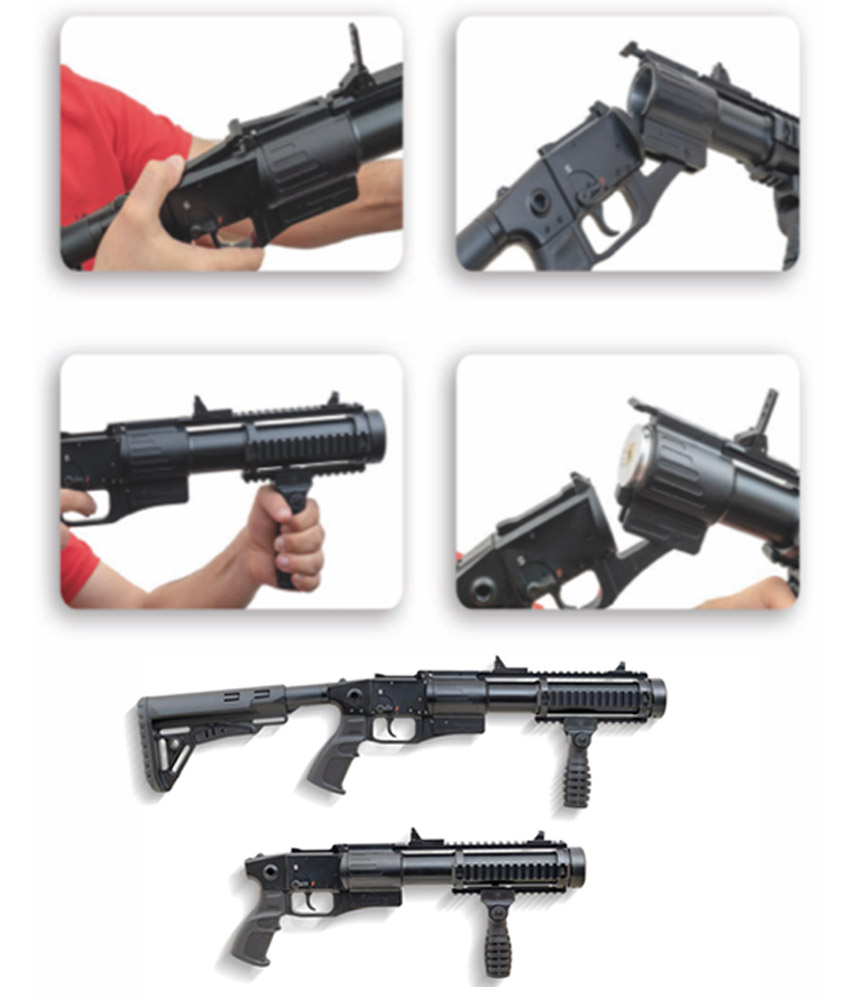

This anti-riot grenade launcher has been designed to fire 37/38- or 40-mm gas cartridges to be used by law enforcement forces or military for riot control.

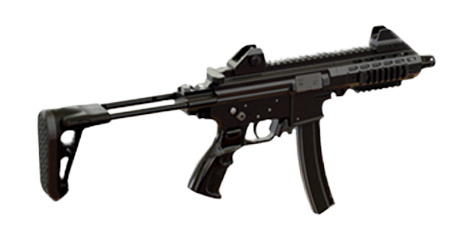

9 mm Submachine Gun is designed for the Armed Forces and law enforcement forces especially in residential areas.
It is has different barrel lenghts and stock systems depending on the place of use and need.
Picatinny rails on the top, bottom and sides of the barrel allows to use the compatible attachment and all new generation accessories.

Barrel Lenght	16,5 CM (6,5")-20 CM (8")-22,5(8,85")-25,4(10")
Total Lenght (W/Out Stock)	14,30"
Total Lenght (With Stock)	24"
Total Lenght (Close Stock)	19,40"
Weight	1830 gr (Without Magazine)
Operation	Blowback Close Bolt
Mod of Operation	Safe - Fire - Automatic (For Military)
Trigger Pull Force	25 - 45 N
Sight	Mechanic Sighte
Fire Selector	Ambidextrous
Height	9,6"
Width	2"
Range	150 m (Efective)
Muzzle Velocity	410 m/s
Barrel Profile	Saami Z299-3 Standart Luger 9 mm, Luger Plus Right Rotated 6 Groove 1-10" Pitch
Caliber	9x19 mm
Shot Pattern	6 Moa
Barrel Material	33 Cr Mov 12-9
Barrel Coating	Melonite
Receiver Material	7075 T6 Alumininum Alloy
Number of Rounds	750 rpm (Full Automatic Version)
Muzzle	M15x1 or M13,5x1
Version of Magazine	10, 20, 30

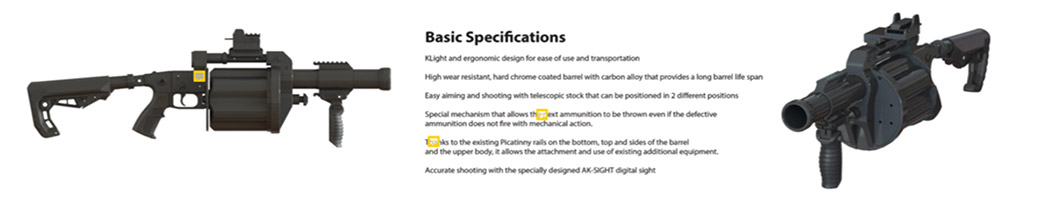

Multiple Grenade Launcher

Multiple Grenade Launcher is designed to provide for the 6-shot Granade Laucher needs of the armed forces and law enforcement forces.

Shoulder-fired multiple grenade launcher can be fired with all available low velocity LV 40X46 mm and medium velocity MV 40x51 mm ammunition types (fog, lightning, gas, destruction, thermobaric and Straining

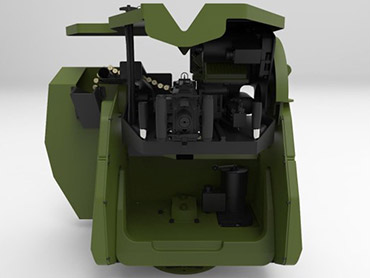

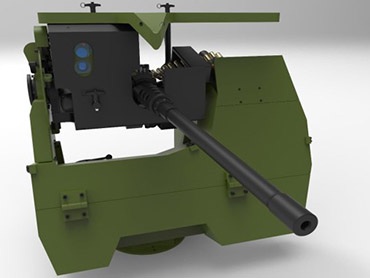

Remote Weapon Station is developed to meet the weapon system requirements for land and naval platforms.
It has a design philosophy to improve fightability and survivability with increased ammunition capacity and ballistic protection without increasing the total weight and structural complexity.
In-vehicle space occupation is also kept minimal for a relax platform integration.
Stabilization feature allows fire-on- the move ability.

Basically 3 types of weapons can be utilized as the main; 50cal machine gun, 7.62mm machine gun and 40mm automatic grenade launcher.
RCWS cradle has necessary expansion provisions to utilize a secondary 7.62mm machine gun as the co-axial.
Similarly, laser guided or seeker head guided missile integration options are available as the growth potential.
All the loaded ammunition and critical system components are under ballistic protection.
